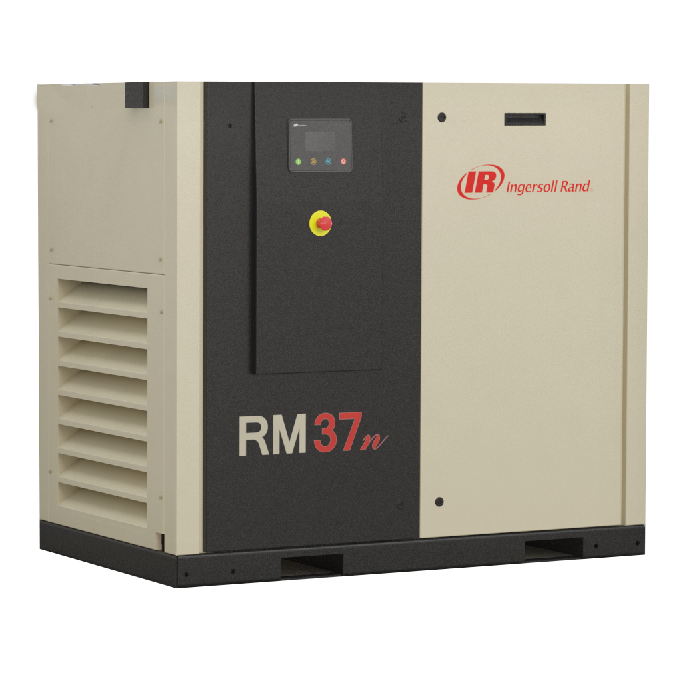

RM30-75kW micro-oil screw variable frequency compressor
The RM30-75kW Micro-Oil Screw Variable Frequency Compressor is built for industrial users who need stable air supply and lower energy costs. Its IE5 oil-cooled PM motor, high-efficiency airend, and intelligent VFD control deliver up to 12–30% saving
RM series compressors all adopt a new high-efficiency host, combined with fixed-frequency IE3 and ECO*-PM permanent magnet variable frequency IE5 energy-efficiency motor technology, which can save you up to 12-30% in electricity costs.
Efficient The newly designed high-efficiency main engine can increase the efficiency by up to 16%, the gas volume by up to 14%, and achieve long-term reliable operation.
Reliable
The three-stage separation system with conical baffles can remove lubricating oil from compressed air to less than 3ppm, thereby protecting downstream equipment and extending filter life, improving productivity and reducing customer maintenance costs.
2. V-shieldTM protection technology uses flat-sealed O-rings to reduce the risk of pipeline leakage.
3. Fixed frequency: equipped with IEC60034-30 standard lE3 high-efficiency motor. The protection level reaches IP55, achieving Class F insulation and Class B temperature rise. Frequency conversion: equipped with high-efficiency IE5, IP66 oil-cooled permanent magnet variable frequency motor, achieving H-class insulation and B-class temperature rise.
Efficiency/Productivity Advantages
Air intake system - adopts large air intake and low pressure drop air filter to effectively reduce the air intake pressure of the unit and improve the efficiency of the unit. Reduce the number of maintenance times, reduce maintenance costs, and boost customer production.
2. The non-welded oil/after-cooler arranged side by side horizontally on the top of the unit reduces deformation and leakage due to thermal stress, improves the reliability of the unit, extends the service life, reduces the number of maintenance times, reduces the customer's cost during the life cycle of the unit, and improves customer satisfaction. productivity. Intelligent
Luminance series smart controllers can monitor system parameters in real time. The standard IoT function allows you to know the status of the air compressor at any time no matter where you are, and can provide early warning to prevent unnecessary sudden shutdowns that may cause you losses.
