Home > RUNNINGWAY Air Compressor > Oil Free Screw Air Compre...

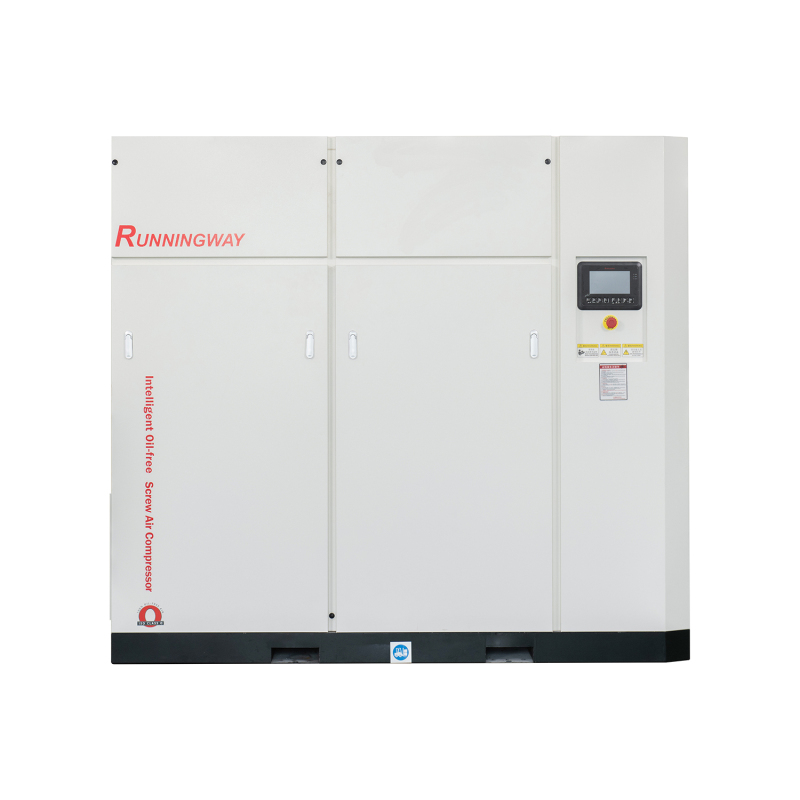

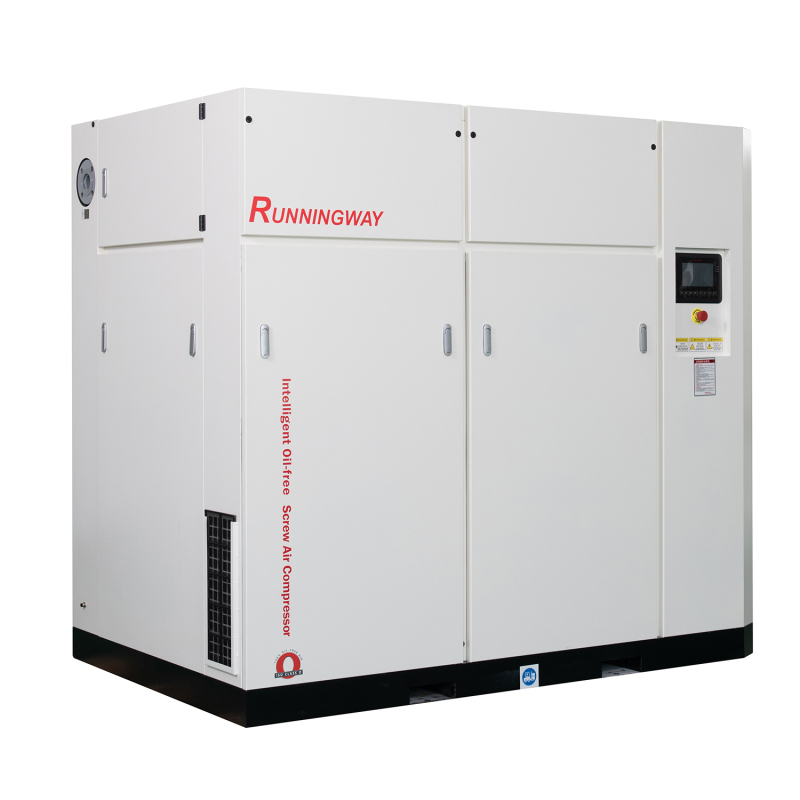

Air Compressor Oil Free Screw VSD
Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD
  • Air Compressor Oil Free Screw VSD

Air Compressor Oil Free Screw VSD

The Runningway oil-free screw air compressor VSD delivers 100% oil-free air certified to German TÜV Class 0 and ISO 8573-1, with a power range of 37–315 kW and flow of 2.6–53 m³/min at 7/8/10 bar.
Request Quote PDF Format
Description Model Specifications
Description
<img src=" src="//ueeshop.ly200-cdn.com/u_file/UPAI/UPAI040/2012/photo/4f64aa7f1a.jpg" />
Model Specifications
Model Maximum Working Pressure Capacity(FAD)* Installed Motor Power Cooling Method Noise Level Air Outlet Pipe
Diameter		 Dimension Weight
50hz
bar(g) psig m3/min cfm kw hp dB(A) L W H kg
RF37-7VSD A(W) 7 102 3.0-6.5 105.9-229.5 37 50 Air Cooling 70 DN50 2160 1450 2200 1850
Water Cooling 63 DN80 2180 1450 2200 1950
RF37-8VSD A(W) 8 116 2.8--6.4 98.8-226 Air Cooling 70 DN50 2160 1450 2200 1850
Water Cooling 63 DN80 2180 1450 2200 1950
RF37-10VSD A(W) 10 145 2.6-6.3 91.8-222.4 Air Cooling 70 DN50 2160 1450 2200 1850
Water Cooling 63 DN80 2180 1450 2200 1950
RF45-7VSD A(W) 7 102 4.5-7.7 158.9-271.8 45 60 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2100
RF45-8VSD A(W) 8 116 4.0-6.5 141.2-229.5 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2100
RF45-10VSD A(W) 10 145 3.5-6.8 123.6-240.1 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2100
RF55-7VSD A(W) 7 102 5.0-9.6 176.5-339 55 75 Air Cooling 70 DN50 2160 1450 2200 1900
Water Cooling 63 DN80 2180 1450 2200 2100
RF55-8VSD A(W) 8 116 4.5-8.8 158.9-310.7 Air Cooling 70 DN50 2160 1450 2200 1900
Water Cooling 63 DN80 2180 1450 2200 2100
RF55-10VSD A(W) 10 145 3.5-7.7 123.6-271.9 Air Cooling 70 DN50 2160 1450 2200 1900
Water Cooling 63 DN80 2180 1450 2200 2100
RF75-7VSD A(W) 7 102 5.5-13.5 194.2-476.7 75 100 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2100
RF75-8VSD A(W) 8 116 4.5-13.3 158.9-469.6 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2100
RF75-10VSD A(W) 10 145 4.4-12.1 155.3-427.3 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2100
RF90-7VSD A(W) 7 102 5.2-16.2 183.6-572 90 120 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2200
RF90-8VSD A(W) 8 116 4.5-15.6 158.9-550.9 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2200
RF90-10VSD A(W) 10 145 4.4-14.2 155.3-501.4 Air Cooling 70 DN50 2160 1450 2200 2000
Water Cooling 63 DN80 2180 1450 2200 2200
RF110-7VSD A(W) 7 102 10.2-19.5 360.2-688.6 110 150 Air Cooling 69 DN80 4050 1650 2000 3700
Water Cooling 67 DN80 2550 1650 2000 2700
RF110-8VSD A(W) 8 116 9.3-19.2 328.4-678 Air Cooling 69 DN80 4050 1650 2000 3700
Water Cooling 67 DN80 2550 1650 2000 2700
RF110-10VSD A(W) 10 145 8.5-17.5 300.1-618 Air Cooling 69 DN80 4050 1650 2000 3700
Water Cooling 67 DN80 2550 1650 2000 2700
RF132-7VSD A(W) 7 102 10.8-23.5 381.3-829.8 132 175 Air Cooling 70 DN80 4050 1650 2000 3700
Water Cooling 67 DN80 2550 1650 2000 2800
RF132-8VSD A(W) 8 116 10.4-22.8 367.2-805.1 Air Cooling 70 DN80 4050 1650 2000 3700
Water Cooling 67 DN80 2550 1650 2000 2800
RF132-10VSD A(W) 10 145 9.9-20.5 349.6-723.9 Air Cooling 70 DN80 4050 1650 2000 3700
Water Cooling 67 DN80 2550 1650 2000 2800
RF145-7VSD A(W) 7 102 11.2-23.9 395.5-844 145 195 Air Cooling 70 DN80 4050 1650 2000 3900
Water Cooling 68 DN80 2550 1650 2000 3000
RF145-8VSD A(W) 8 116 10.2-22.1 360.2-780.4 Air Cooling 70 DN80 4050 1650 2000 3900
Water Cooling 68 DN80 2550 1650 2000 3000
RF145-10VSD A(W) 10 145 9.8-20.5 346.0-723.9 Air Cooling 70 DN80 4050 1650 2000 3900
Water Cooling 68 DN80 2550 1650 2000 3000
RF160-7VSD A(W) 7 102 12.1-28.5 427.3-1006.4 160 215 Air Cooling 74 DN80 5040 1650 2100 5400
Water Cooling 72 DN80 3100 1650 2000 4000
RF160-8VSD A(W) 8 116 11.6-26.4 409.6-932.3 Air Cooling 74 DN80 5040 1650 2100 5400
Water Cooling 72 DN80 3100 1650 2000 4000
RF160-10VSD A(W) 10 145 9.9-24.5 349.6-865.2 Air Cooling 74 DN80 5040 1650 2100 5400
Water Cooling 72 DN80 3100 1650 2000 4000
RF200-7VSD A(W) 7 102 16.5-36.1 582.6-1274.8 200 270 Air Cooling 76 DN80 5040 1650 2100 5600
Water Cooling 65 DN80 3100 1650 2000 4200
RF200-8VSD A(W) 8 116 15.4-33.9 543.8-1197.1 Air Cooling 76 DN80 5040 1650 2100 5600
Water Cooling 65 DN80 3100 1650 2000 4200
RF200-10VSD A(W) 10 145 15.0-30.8 529.7-1087.6 Air Cooling 76 DN80 5040 1650 2100 5600
Water Cooling 67 DN80 3100 1650 2000 4200
RF250-7VSD A(W) 7 102 21.1-45.2 745.1-1596.2 250 350 Air Cooling 76 DN80 5040 1650 2100 5800
Water Cooling 74 DN80 3100 1650 2000 4300
RF250-8VSD A(W) 8 116 19.2-43.4 678.0-1532.6 Air Cooling 76 DN80 5040 1650 2100 5800
Water Cooling 74 DN80 3100 1650 2000 4300
RF250-10VSD A(W) 10 145 18.5-38.8 653.3-1370.2 Air Cooling 76 DN80 5040 1650 2100 5800
Water Cooling 74 DN80 3100 1650 2000 4300
RF275-7VSD A(W) 7 102 22.2-46.8 783.9-1652.7 275 370 Air Cooling 76 DN80 5040 1650 2100 5900
Water Cooling 74 DN80 3100 1650 2000 4400
RF275-8VSD A(W) 8 116 21.3-43.5 752.2-1536.1 Air Cooling 76 DN80 5040 1650 2100 5900
Water Cooling 74 DN80 3100 1650 2000 4400
RF275-10VSD A(W) 10 145 20.1-41.5 709.8-1465.5 Air Cooling 76 DN80 5040 1650 2100 5900
Water Cooling 74 DN80 3100 1650 2000 4400
RF315-7VSD A(W) 7 102 25.0-53.0 882.8-1871.6 315 420 Air Cooling 76 DN80 5040 1650 2100 5800
Water Cooling 65 DN80 3100 1650 2000 4400
RF315-8VSD A(W) 8 116 24.0-51.5 847.5-1818.7 Air Cooling 76 DN80 5040 1650 2100 5800
Water Cooling 65 DN80 3100 1650 2000 4400
RF315-10VSD A(W) 10 145 23.0-49.5 812.2-1748 Air Cooling 76 DN80 5040 1650 2100 5800
Water Cooling 65 DN80 3100 1650 2000 4400
