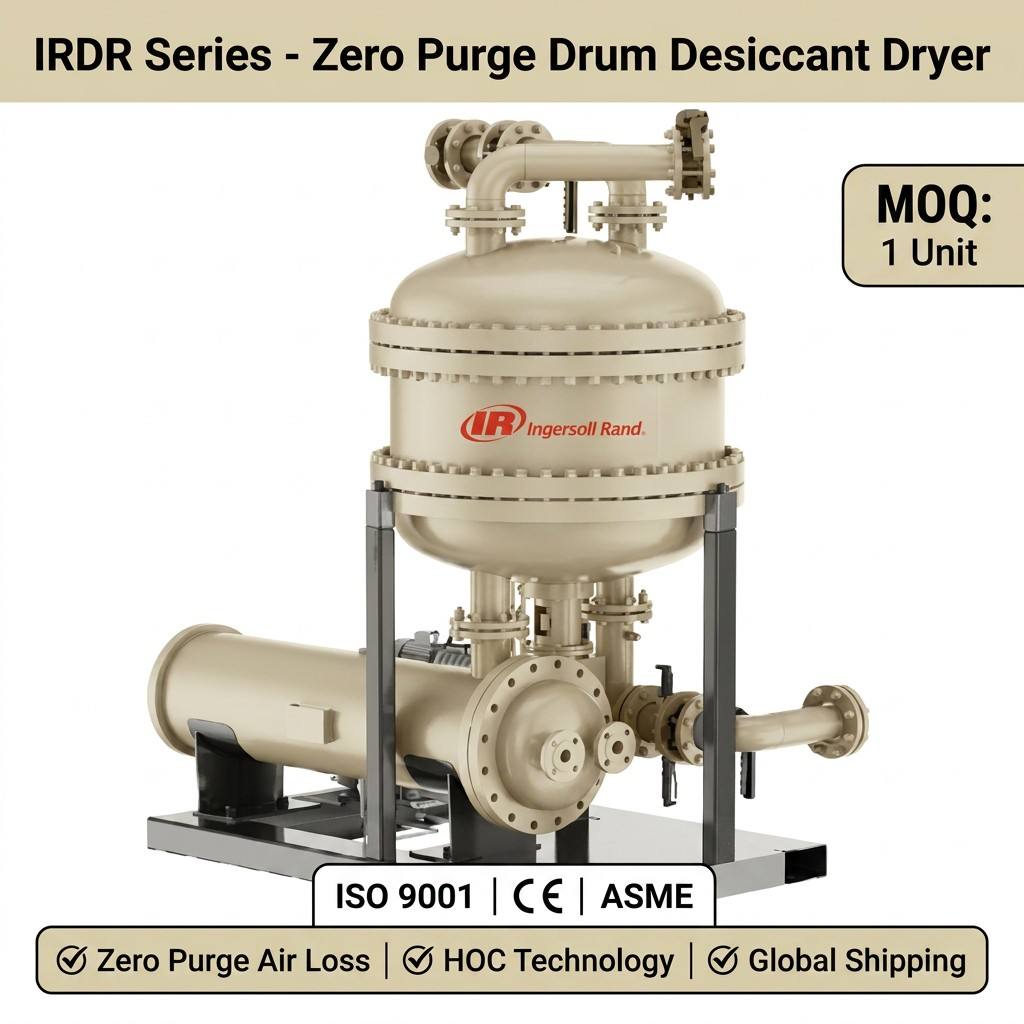

Ingersoll Rand Irdr Series Zero Purge Drum Desiccant Air Dryer

True Zero Purge & Energy Loss: Fully recycles the heat of compression from oil-free compressors (inlet temp ≥110°C) for desiccant reactivation. Eliminates the 15-20% air loss common in twin-tower dryers, maximizing your effective air output.
Continuous High-Efficiency Purification: Features a single-tower design that eliminates the pressure fluctuations and dew point spikes associated with dual-tower switching. The result is a stable, consistent pressure dew point from -10°C to -40°C.
Advanced Honeycomb Drum Technology: Constructed from a rigid substrate coated with composite silica gel in a honeycomb structure, providing a massive surface area for moisture adsorption with minimal air resistance (pressure drop).
Minimal Maintenance & No Dust: Unlike traditional dryers, the IRDR uses no alumina molecular sieve beads, eliminating desiccant dust contamination in downstream piping. No complex pneumatic switching valves mean fewer moving parts and higher reliability.
Smart Control with Siemens PLC: Equipped with a standard Siemens PLC and a color touch-screen HMI. Integrated Variable Frequency Drive (VFD) speed control adjusts drum rotation based on load for optimized performance.
Compact & Ultra-Quiet Design: Occupies the smallest installation footprint in the high-flow dryer category. Low-speed rotation ensures whisper-quiet operation with no exhaust noise or atmospheric blow-off.
Advanced Condensate Drainage: Features standard zero-loss electronic drain valves to ensure consistent water removal without wasting valuable compressed air.
