Ingersoll Rand Oil-Free Turbo Air Compressor

Item No.: 25
Pure oil-free, certified by ISO CLASS O
Air-cooled 40 degree ambient temperature design to meet all-weather operation requirements
The silent chamber enclosure closes the noise and can be used directly in laboratories, clinics, etc.
The main engine-mot
Description
product description:


Pure oil-free, certified by ISO CLASS O

Air-cooled 40 degree ambient temperature design to meet all-weather operation requirements

The silent chamber enclosure closes the noise and can be used directly in laboratories, clinics, etc.

The main engine-motor adopts modular design, each module is 2.2/3.7kw.



Innovation, environmentalprotection, reliability
High quality compressed air comes from Ingersoll Rand VT series of oil-free vortex air system solutions.
For example: food industry, pharmaceutical chemistry, medical sector, precision products semiconductor, painting and printing, golf course, etc.

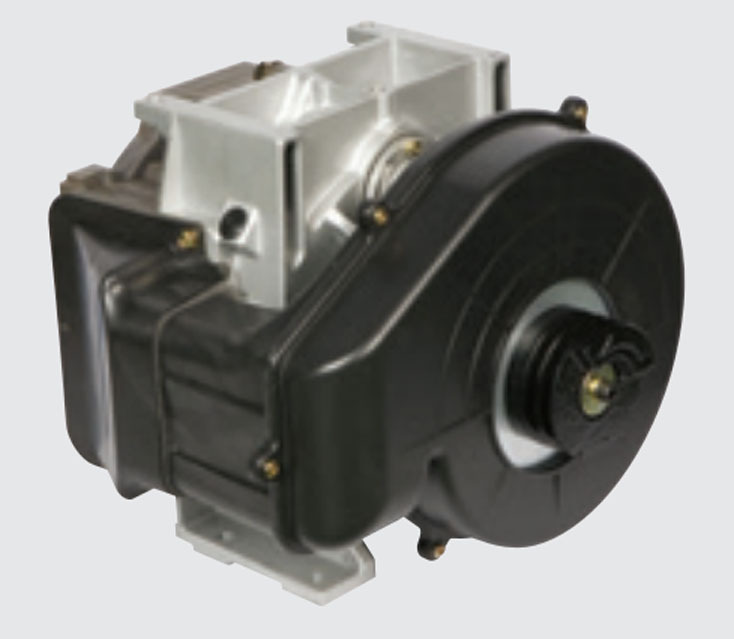

High quality compression module
The process of oil-free scroll compression is achieved through the rotating motion of the stationary vortex disk and the moving vortex disk.
The air enters from the side of the main engine, and the air is sucked and the air inlet is closed. As the vortex disk rotates, the air is compressed continuously, and the process is repeated continuously, so that the compressed air discharged is continuous and unsteady.

technical parameters :

Models Power Pressure Capacity Cooling Dimension Weight
VT2 - 8 2.2kw 8 bar 0.27 m3 / min A / C 550 * 620 * 775 115kg
VT2 - 10 10 bar 0.22 m3 / min A / C 550 * 620 * 775 115kg


Clean and oil-free compressed air
SIRC oil-free scroll compressor, because there is no metal contact between the compression scrolls, the compression chamber does not need oil lubrication, so fundamentally ensure the high quality of oil-free compressed air.
At the same time, the main engine of the unit is belt-driven, without refueling, so as to further ensure that clean and oil-free compressed air can be provided, and the series of air compressors meet the ISO8573-1:2010 grade standard, it is the strict air quality grade standard, through the German Rhine TUV rigorous test, obtained the ISO Class. 0 oil free certification

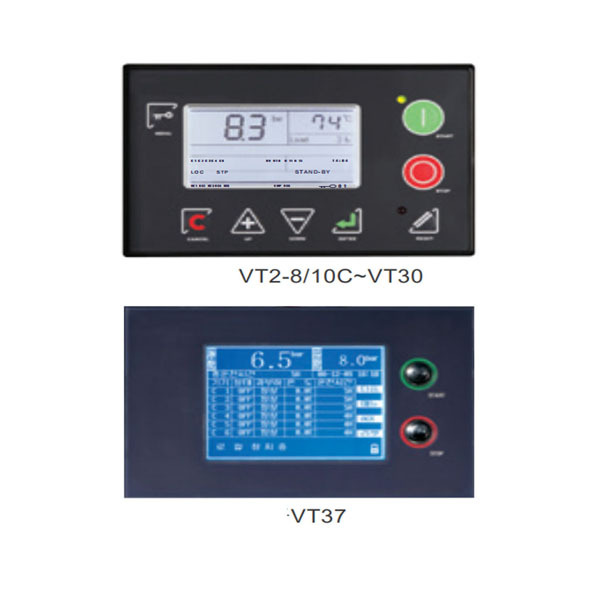

Intelligent controller design
1.VT2-8/10C~VT30 wide LCD display, friendly and  interface.

2. can display many languages, including Chinese and English.
3. protection of more than 160 operational records to ensure stable operation of the unit.
4. Professional ladder control technology can automatically adjust the start and stop of each engine head according to the customer's gas demand, so as to realize the optimal operation of the whole oil-free system.
5.VT37 uses the 5.7 "large screen touch screen controller" to display more comprehensive information and operate more conveniently.



Low noise design
1. Super-high precision compression and vortex machining technology ensures the continuity and stability of scheduling, and requires the sound of moving parts, and air blast sound.

2. Balance design of dynamic and static scroll disc, and special shock-proof rubber of intake end and motor base of scroll main engine can avoid vibration and remove noise more effectively.
3. The mute case encloses the noise inside the unit so that the compressor can be placed in the laboratory, clinic and other field use.








V series power frequency screw air compressor
INGESOLAND: With a history of more than 100 years, INGESOLAND is a global leader in creating and maintaining a safe, comfortable and efficient environment for commercial, civil and industrial markets, with annual sales of more than $17 billion, one of the top 500 enterprises in the world. With more than 64,000 employees worldwide and more than 100 factories on all continents, Ingersoll Rand, SIRC, Thermo king and Trane are among the leading brands in their respective markets, working together to improve the air quality and comfort of residential and building buildings, transport and protect the safety of perishable food products, and Improve productivity and efficiency in the industrial sector.
