GDK series screw air compressor

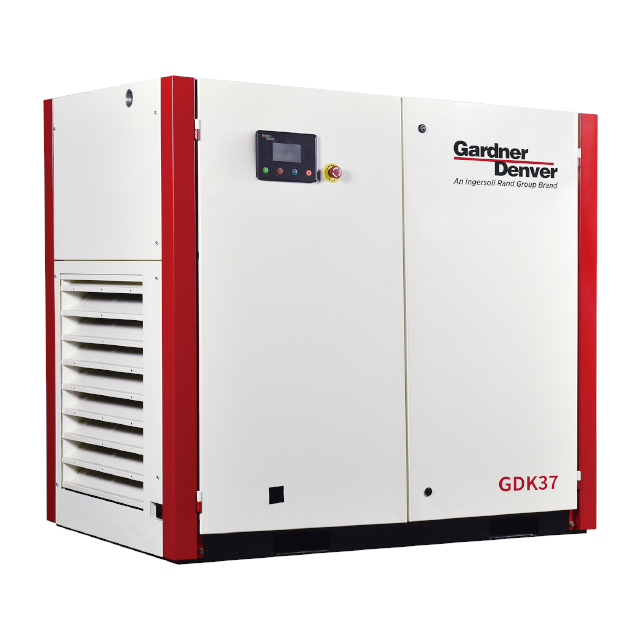

Screw Air Compressor Gardner Denver GDK37 power frequency

Gardner Denver 37kw power frequency screw air compressor
Description Technical Parameter
Integrated Airend Design
Reduce dew point and pressure loss
Compact design reduces installation space
Reliable Electric Control Design
Electric cabinet with high protection level
High margin electric control design
Built In Oil Separation System
Low oil content design
No risk of pipeline leakage
Low voltage loss
Airend And Motor Direct Connection System
No coupling, reduce energy consumption
Reduce daily maintenance costs
Flip Over Self Tensioning Design
No calibration required
15-22kw adopts 12 groove imported brand belt, which is firm and reliable
Efficient Cooling System
ERP2015 standard, outer rotor fan, streamlined air guide cover, low power consumption
Friendly Service Interface
Switch type removable door panel
Overhaul and maintenance, easy and convenient replacement of consumables
Efficient Cooling System
High margin cooler design
Large size bellows ensures the cooling flow field

Model Motor Power Pressure Air Flow Dimensions (mm) Weight Exhaust Hole
kw MPa(g) m3/min L W H kg
GDK07-7A 7.5 7 1.22 717 627 1060 222 G3/4
GDK07-8A 7.5 8 1.14 717 627 1060 222 G3/4
GDK07-10A 7.5 10 1 717 627 1060 222 G3/4
GDK07-12.5A 7.5 12.5 0.81 717 627 1060 222 G3/4
GDK11-7A 11 7 1.69 717 627 1060 225 G3/4
GDK11-8A 11 8 1.58 717 627 1060 225 G3/4
GDK11-10A 11 10 1.41 717 627 1060 225 G3/4
GDK11-12.5A 11 12.5 1.23 717 627 1060 225 G3/4
GDK15-7A 15 7 2.5 984 832 1065 465 G1
GDK15-8A 15 8 2.4 984 832 1065 465 G1
GDK15-10A 15 10 2.07 984 832 1065 465 G1
GDK15-12.5A 15 12.5 1.7 984 832 1065 465 G1
GDK18-7A 18 7 3.1 984 984 1115 509 G1
GDK18-8A 18 8 3 984 984 1115 509 G1
GDK18-10A 18 10 2.61 984 984 1115 509 G1
GDK18-12.5A 18 12.5 2.15 984 984 1115 509 G1
GDK22-7A 22 7 3.7 984 984 1115 524 G1
GDK22-8A 22 8 3.41 984 984 1115 524 G1
GDK22-10A 22 10 3.08 984 984 1115 524 G1
GDK22-12.5A 22 12.5 2.72 984 984 1115 524 G1
GDK30-7A 30 7 5.43 1544 884 1405 692 G1 1/4
GDK30-8A 30 8 5.21 1544 884 1405 692 G1 1/4
GDK30-10A 30 10 4.6 1544 884 1405 692 G1 1/4
GDK37-7A 37 7 6.34 1544 884 1405 742 G1 1/4
GDK37-8A 37 8 5.83 1544 884 1405 742 G1 1/4
GDK37-10A 37 10 5.34 1544 884 1405 742 G1 1/4
GDK45-7A 45 7 8.23 1544 884 1405 870 G1 1/4
GDK45-8A 45 8 7.82 1544 884 1405 870 G1 1/4
GDK45-10A 45 10 6.6 1544 884 1405 870 G1 1/4
GDK55-7A 55 7 10.6 1969 1234 1605 1472 G2
GDK55-8A 55 8 10 1969 1234 1605 1472 G2
GDK55-10A 55 10 8.6 1969 1234 1605 1472 G2
GDK75-7A 75 7 13.41 1969 1234 1605 1482 G2
GDK75-8A 75 8 13 1969 1234 1605 1482 G2
GDK75-10A 75 10 11.3 1969 1234 1605 1482 G2
