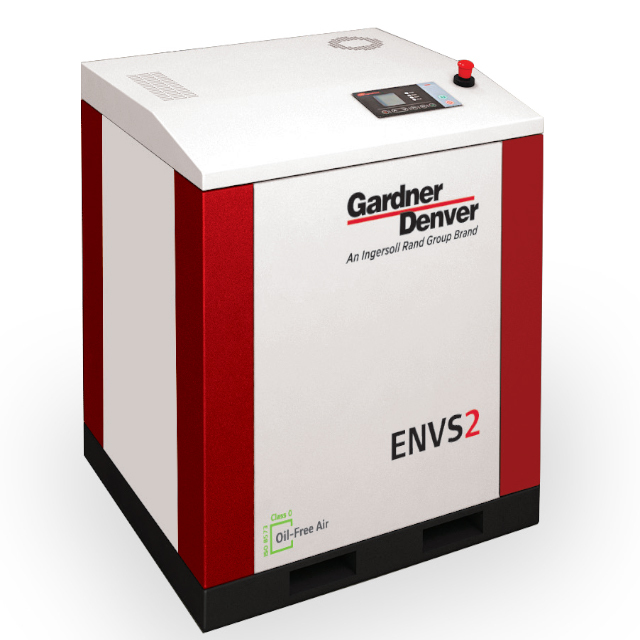

Scroll air compressor Gardner Denver 2.2kw

Gardner Denver has over 150 years of experience in manufacturing the highest quality compressors. The rotary scroll system is the perfect example of our progressive innovation.
Oil-less compressors have become a standard in industries such as medical, lab/research, biotechnology, pharmaceutical, food & beverage, and semiconductor. Oil contamination is extremely detrimental to these processes. Pure air quality demands are rapidly growing with new regulations and laws regarding oil contamination throughout multiple industries and applications. Gardner Denver has designed the Scroll compressor specifically for these applications that require 100% OIL-FREE AIR.

• Extremely Quiet Operation
• Fewer Moving Parts, Low Maintenance & High Reliability
• Environmentally Friendly Contaminate Free Air


Scroll Compression Explained

• An orbiting (rotating) scroll and fixed scroll housing are mated to created the compression chambers
• The continual movement of the orbiting scroll moves atmospheric air from the intake toward the center, compressing the air into progressively smaller areas
• The compressed air is directed to the center discharge port of the compressor


Scroll Compressor Features

• 100% Oil-Less Design
• Oil-Free/Contaminant Free Air
• Continuous Operation, 100% Duty Cycle
• Integral Cooling Fan
• Low Sound Levels
• Low Vibration
• Compact Footprint
• Low Maintenance and High Reliability


Eliminate the Risk
Guaranteed 100% Oil-Free
The ENVS is a 100% Oil-Less design. There is no oil present anywhere in the compressor package, which completely eliminates the risk of product contamination due to oil carryover. The ENVS meets ISO 8573-1 Class 0, the most stringent class. It is also certified Silicone-Free which is critical for applications such as automotive and pharmaceutical.

Silicone-Free
Silicone contamination in compressed air systems cause problems across a wide range of industries such as electronics, pharmaceuticals and automotive. Costly product spoilage, re-work and production downtime can result from this contamination.
For example, a high quality paint finish is essential to the automotive industry. Blisters, cracks, craters and loss of adhesion are all symptoms of silicone contamination.

• 100% silicone-free, guaranteed
• Specifically designed for use in pure-air critical applications such as the automotive, food and beverage, pharmaceutical, laboratory, and medical industries
• Avoids contamination and provides the highest air quality standards
• Independently tested and certified


Gardner Denver-the Total Package
Dryers, Filtration & Downstream Equipment
Compressed air systems require clean dry air with environmentally sound disposal of by-products. That is why Gardner Denver support dose not stop at the compressor. Proper removal of contaminates is essential in preventing costly damage to equipment. Gardner Denver provides a broad range of dryers, filters, separators, drains, and other downstream products to ensure total system reliability. Shown below are some typical applications and general product arrangements.

Pneumatic Tools
Spray Painting
Food & Beverage
Laboratory
Pharmaceutical
High Tech Laboratory
Medical Equipment
