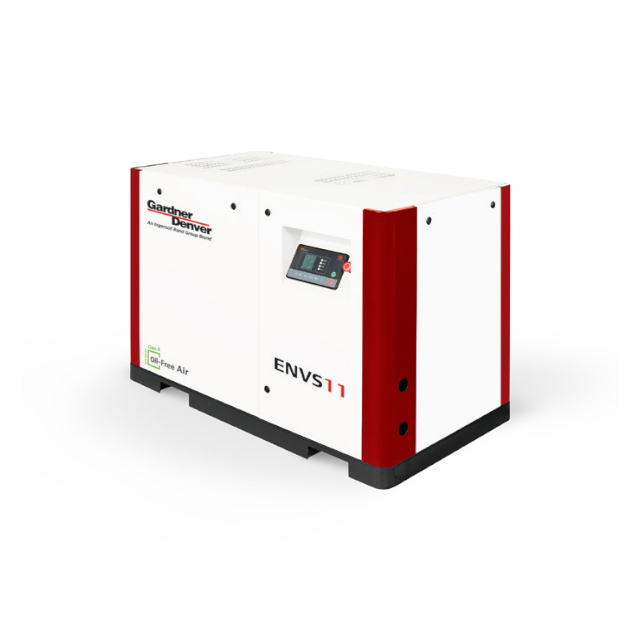

Scroll Air Compressor Gardner Denver 11kw

Oil-less compressors have become a standard in industries such as medical, lab/research, biotechnology, pharmaceutical, food & beverage, and semiconductor. Oil contamination is extremely detrimental to these processes. Pure air quality demands are rapidly
Description Technical Parameter
Gardner Denver has over 150 years of experience in manufacturing the highest quality compressors. The rotary scroll system is the perfect example of our progressive innovation.
Oil-less compressors have become a standard in industries such as medical, lab/research, biotechnology, pharmaceutical, food & beverage, and semiconductor. Oil contamination is extremely detrimental to these processes. Pure air quality demands are rapidly growing with new regulations and laws regarding oil contamination throughout multiple industries and applications. Gardner Denver has designed the Scroll compressor specifically for these applications that require 100% OIL-FREE AIR.
  • Extremely Quiet Operation
  • Fewer Moving Parts, Low Maintenance & High Reliability
  • Environmentally Friendly Contaminate Free Air

Scroll Compression Explained
  • An orbiting (rotating) scroll and fixed scroll housing are mated to created the compression chambers
  • The continual movement of the orbiting scroll moves atmospheric air from the intake toward the center, compressing the air into progressively smaller areas
  • The compressed air is directed to the center discharge port of the compressor

Scroll Compressor Features
  • 100% Oil-Less Design
  • Oil-Free/Contaminant Free Air
  • Continuous Operation, 100% Duty Cycle
  • Integral Cooling Fan
  • Low Sound Levels
  • Low Vibration
  • Compact Footprint
  • Low Maintenance and High Reliability

Eliminate the Risk
Guaranteed 100% Oil-Free
The ENVS is a 100% Oil-Less design. There is no oil present anywhere in the compressor package, which completely eliminates the risk of product contamination due to oil carryover. The ENVS meets ISO 8573-1 Class 0, the most stringent class. It is also certified Silicone-Free which is critical for applications such as automotive and pharmaceutical.

Silicone-Free
Silicone contamination in compressed air systems cause problems across a wide range of industries such as electronics, pharmaceuticals and automotive. Costly product spoilage, re-work and production downtime can result from this contamination.
For example, a high quality paint finish is essential to the automotive industry. Blisters, cracks, craters and loss of adhesion are all symptoms of silicone contamination.
  • 100% silicone-free, guaranteed
  • Specifically designed for use in pure-air critical applications such as the automotive, food and beverage, pharmaceutical, laboratory, and medical industries
  • Avoids contamination and provides the highest air quality standards
  • Independently tested and certified

Gardner Denver-the Total Package
Dryers, Filtration & Downstream Equipment
Compressed air systems require clean dry air with environmentally sound disposal of by-products. That is why Gardner Denver support dose not stop at the compressor. Proper removal of contaminates is essential in preventing costly damage to equipment. Gardner Denver provides a broad range of dryers, filters, separators, drains, and other downstream products to ensure total system reliability. Shown below are some typical applications and general product arrangements.

Pneumatic Tools
Spray Painting
Food & Beverage
Laboratory
Pharmaceutical
High Tech Laboratory
Medical Equipment


Model Maximum Pressure
barg
Rated
Motor
Power
kw
Air
Flow
m3/min
Interface
Size
BSPT
Dimensions
L*W*H
mm
Weight
kg
Noise
Level
dB(A)
ENVS2-A8 8 2.2 0.24 1/2'' 830*740*910 204 58
ENVS2-A10 10 2.2 0.21 1/2'' 204 58
ENVS4-A8 8 3.7 0.40  1/2'' 231 58
ENVS5-A8 8 5.5 0.60  1/2'' 240 59
ENVS5-A10 10 5.5 0.53 1/2'' 240 59
ENVS7-A8 8 7.7 0.84 1'' 1445*800*1000 438 62
ENVS7-A10 10 7.7 0.74 1'' 438 62
ENVS11-A8 8 11 1.20  1'' 495 64
ENVS11-A10 10 11 1.06 1'' 495 64
ENVS17-A8 8 16.5 1.89 R1 1280*770*1480 515 61
ENVS17-A10 10 16.5 1.50  R1 515 61
ENVS22-A8 8 22 2.52 R1 1330*880*1990 720 61
ENVS22-A10 10 22 2.00  R1 720 61
ENVS33-A8 8 33 3.78 R1.5 1360*1030*1670 1000 63
ENVS33-A10 10 33 3.00  R1.5 1000 63
