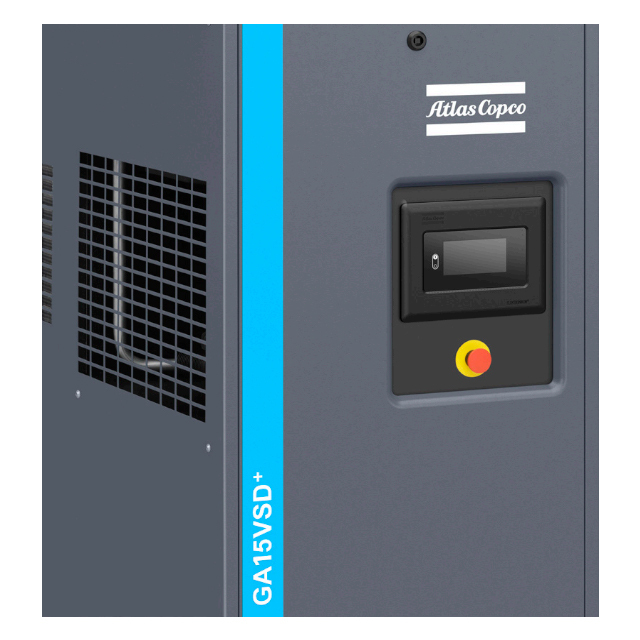

Rotary Screw Air Compressor GA 15 VSD+ Atlas Copco Price

Innovative
Atlas Copco has revolutionized compressor build and performance. Instead of the normal space taking horizontal design, the new GA 7-37 VSD⁺ has an upright, compact layout. This saves valuable floor and work space, eases maintenance access, and reduces the total cost of ownership for all customers.
Efficient
Reduced energy consumption by 50% on average compared to the current idling models.
Free Air Delivery (FAD) increase of up to 12%.
Meeting and exceeding efficiency benchmarks:
The iPM motor of the GA 7-37 VSD⁺ equals IE5 standards.
The inverter and iPM motor exceed IES2 (EN 50598) requirements for power drive efficiency.
Reliable
Low maintenance: fewer components, increased uptime.
Based on the unique combination of proven technologies and existing components, optimally brought together by Atlas Copco's experience and know-how.
Smart
Easy monitoring and maintenance thanks to the Elektronikon Touch controller.
Maintenance notifications and machine status are available via SMARTLINK e-mail or text messages.
Customized reports on the energy performance of your machine, in compliance with ISO 50001.

Inside the innovative GA 7-37 VSD⁺
1.Interior Permanent Magnet (Ipm) motor
Compact, customized design for optimal cooling by oil.
Designed in-house in Belgium.
IP66 protection rating.
No cooling air flow required.
Oil-lubricated motor bearing:
No (re)grease(ing), increased uptime.
2.Element
Made by Atlas Copco.
Robust and silent.
3.Direct drive
Vertical design, fewer parts.
Oil-cooled, pressure-tight.
No gears or belts, no shaft seal.
Compact: footprint down 60%.
4.Innovative fan
Based on the newest technologies.
In compliance with ERP2015 efficiency.
Low noise levels.
5.Robust oil filter/separator
Integrated bypass valve with the oil filter.
Easy maintenance.
6.Electronic no-loss water drain
Included as standard.
Efficient removal of condensate without loss of compressed air.
Manual integrated bypass for effective condensate removal in case of power failure.
7. Eletronikon Touch controller
High-tech controller with warning indications, compressor shut-down and maintenance scheduling.
Easy to use and designed to perform in the toughest conditions.
Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
Optional multiple compressor control (2,4 or 6 compressors).
8.Sentinel valve
No inlet arrestor.
No blow-off or pressure drop losses.
Maintenance-free.
9.VSD⁺ cubicle
VSD⁺ is superior to idling machines.
Electrical components remain cool, enhancing their lifetime.
Dedicated drive for iPM technology motors.
5% DC choke as standard.
Heat dissipation of inverter in separate compartment.

VSD⁺ for 50% average energy savings
Atlas Copco's GA Variable Speed Drive⁺ (VSD⁺) technology closely matches the air demand by automatically adjusting the motor speed. Combined with the innovative design of the iPM (Permanent Magnet) motor, this results in average energy savings of 50% and an average reduction of 37% in the lifecycle cost of a compressor.

Why Atlas Copco Variable Speed Drive⁺ technology?
On average 50% energy savings with an extensive flow range (20-100%).
Integrated Elektronikon Touch controller controls the motor speed and high-efficiency frequency inverter.
No wasted idling times or blow-off losses during operation.
Compressor can start/stop under full system pressure without the need to unload.
Eliminates peak current penalty during start-up.
Minimizes system leakage due to lower system pressure.
EMC compliance with directives (2004/108/EG)

Advanced monitoring, control & connectivity
Whether you call it industry 4.0 or the Internet of Things (IoT), interconnectivity is the future. The GA 7-37 VSD⁺ comes fully prepared. Its advanced monitoring, control, and connectivity features allow you to optimize compressor performance, resources, efficiency, and productivity.
CONNECT SMARTLINK: Data Monitoring Program
Remote monitoring helps you optimize your compressed air system and save energy and costs.
Provides a complete view into your compressed air network.
Anticipates potential problems by warning you upfront.
Excellence in integrated air quality
Untreated compressed air contains moisture and aerosols which increase the risk of corrosion and compressed air system leaks. This can result in a damaged air system and contaminated end products. Maintenance costs can far exceed air treatment costs. The GA 7-37 VSD⁺ provides clean, dry air that improves your system's reliability avoids costly downtime and production delays and safeguards the quality of your products.

On average 50% energy savings with newly designed integrated dryers
Pressure dewpoint of 3ºC/37.4ºF(100% relative humidity at 20ºC/68ºF).
Heat exchanger cross-flow technology with low-pressure drop.
Zero waste of compressed air thanks to the no-loss condensate drain.
Reduced operating costs.
Environmentally-friendly characteristics: zero ozone depletion.
Global warming potential has been lowered by an average of 50% by reducing the amount of refrigerant in the new dryer.

State-of-the-art Elektronikon Touch controller
Improved user-friendliness: 4.3-inch high-definition color display with clear pictograms and service indicators.
Built-in SMARTLINK online monitoring.
Increased reliability: new, user-friendly, multilingual user interface and durable touch screen.
Key features:
Automatic restart after voltage failure.
Internet-based compressor visualization using a simple Ethernet connection.
Dual Pressure Set Point.
More flexibility: four different week schedules that can be programmed for a period of 10 consecutive weeks.
On-screen Delayed Second Stop function and VSD⁺ savings indication.
Graphical service plan indication.
Remote control and connectivity functions.
Control up to 6 compressors by installing the optional equalizer central controller software.

Compressor Type	Max. Working Pressure		Capacity FAD* (min-max)			Installed Motor Power		Noise Level**	Weight WorkPlace	Weight WorkPlace Full Feature
	bar(e)	psig	l/s	m3/h	cfm	KW	hp	dB(A)	kg	kg
GA 7 VSD+	5.5	80	7.2-21.9	25.9-78.8	15.2-46.4	7.5	10	62	193	277
	7	102	7.0-21.7	25.2-78.1	14.8-46.0	7.5	10	62	193	277
	9.5	138	6.8-18.0	24.5-64.8	14.4-38.1	7.5	10	62	193	277
	12.5	181	7.3-14.2	26.3-51.1	15.5-30.1	7.5	10	62	193	277
GA 11 VSD+	5.5	80	7.3-32.9	26.3-118.4	15.5-69.7	11	15	63	196	280
	7	102	7.3-32.5	26.3-117.0	15.5-68.8	11	15	63	196	280
	9.5	138	7.0-27.2	25.2-97.9	14.8-57.6	11	15	63	196	280
	12.5	181	7.6-23.5	27.4-84.6	16.1-49.8	11	15	63	196	280
GA 15 VSD+	5.5	80	7.2-42.3	25.9-152.3	15.2-89.6	15	20	64	199	288
	7	102	7.1-41.8	25.6-150.5	15.0-88.6	15	20	64	199	288
	9.5	138	6.8-35.5	24.5-127.8	14.4-75.2	15	20	64	199	288
	12.5	181	7.3-27.9	26.3-100.4	15.5-59.1	15	20	64	199	288
GA 18 VSD+	4	58	15.1-63.9	54.4-230.0	32.0-135.4	18	25	67	367	480
	7	102	14.9-62.5	53.6-225.0	31.6-132.4	18	25	67	367	480
	9.5	138	17.1-53.6	61.6-193.0	36.2-113.6	18	25	67	367	480
	12.5	181	16.4-43.5	59.0-156.6	34.7-92.2	18	25	67	367	480
GA 22 VSD+	4	58	15.3-76.9	55.1-276.8	32.4-162.9	22	30	67	363	485
	7	102	15.0-75.1	54.0-270.4	31.8-159.1	22	30	67	363	485
	9.5	138	17.3-65.2	62.3-234.7	36.7-138.2	22	30	67	363	485
	12.5	181	17.1-54.1	61.6-194.8	36.2-114.6	22	30	67	363	485
GA 26 VSD+	4	58	14.9-86.3	53.6-310.7	31.6-182.9	26	35	67	373	490
	7	102	14.5-85.5	52.2-307.8	30.7-181.2	26	35	67	373	490
	9.5	138	17.0-78.4	61.2-282.2	36.0-166.1	26	35	67	373	490
	12.5	181	16.4-64.5	59.0-232.2	34.7-136.7	26	35	67	373	490
GA 30 VSD+	4	58	15.1-98.0	54.4-352.8	32.0-207.7	30	40	67	376	500
	7	102	15.0-97.4	54.0-350.6	31.8-206.4	30	40	67	376	500
	9.5	138	17.1-85.6	61.6-308.2	36.2-181.4	30	40	67	376	500
	12.5	181	16.7-72.0	60.1-259.2	35.4-152.6	30	40	67	376	500
GA 37 VSD+	4	58	15.3-116.5	55.1-419.4	32.4-246.8	37	50	67	376	500
	7	102	14.8-115.0	53.3-414.0	31.4-243.7	37	50	67	376	500
	9.5	138	17.1-102.3	61.6-368.3	36.2-216.8	37	50	67	376	500
	12.5	181	16.4-86.7	59.0-312.1	34.7-183.7	37	50	67	376	500
GA 37L VSD+***	4	58	26.2-132.9	94.2-478.6	55.5-81.7	37	50	67	860	1060
	7	102	15.8-131.9	92.9-474.7	54.7-279.4	37	50	67	860	1060
	9.5	138	24.8-116.0	89.2-417.7	52.5-245.8	37	50	67	860	1060
	12.5	181	38.2-98.7	137.5-355.2	80.9-209.1	37	50	67	860	1060

*Unit performance measured according ISO 1217 ed. 4 2009, annex E, latest edition.
**Mean noise level measured at a distance of 1 m at max. working pressure according to ISO 2151:2004 using ISO 9614/2 (sound intensity method); tolerance 3 dB(A).
***L=larger drive train. This model is part of a different series with different specifications and additional benefits: more energy savings, higher FAD, and a lower noise level.

FAD is measured at the following effective working pressures:
4 bar(e) (GA 18-37L VSD+)
5.5 bar(e) (GA 7-15 VSD+)
7 bar(e)
9.5 bar(e)
12.5 bar(e)

Maximum working pressure: 13 bar(e) (188 psig)

Reference conditions:
Absolute inlet pressure 1 bar (14.5 psi)
Intake air temperature 20℃/68℉


Dimensions	Standard						Full Feature
	D (mm)	W (mm)	H (mm)	D (in)	W (in)	H (in)	D (mm)	W (mm)	H (mm)	D (in)	W (in)	H (in)
GA 7-15 VSD+	630	610	1420	24.8	24.02	55.91	630	985	1420	24.80	38.78	55.91
GA 18-37 VSD+	780	811	1590	30.71	31.93	62.6	780	1273	1590	30.71	50.12	62.60
GA 37L VSD+	1100	1153	1968	43.31	45.39	77.48	1100	1656	1968	43.31	65.20	77.48
