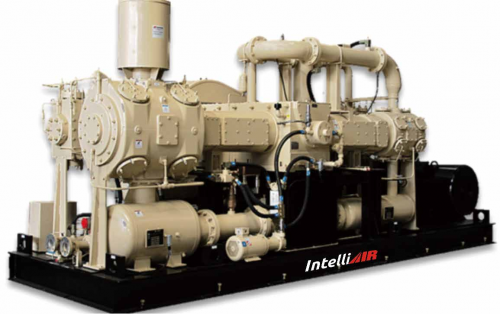

Horizontally Opposed Four-stage Compression Oil-free Machine (Heavy-duty Water-cooled Type)

Name: Horizontally Opposed Four-stage Compression Oil-free Machine (Heavy-duty Water-cooled Type)
Brand: Ingersoll Rand Air Compressor
SKU: 01
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 01

INQUIRY PDF Format

Description

100% oil-free water-cooled design, European and American heavy-duty design, suitable for continuous operation under 365Dx24H full load;

Four-stage compression with optimal compression ratio, more energy efficient;

Three stage fow regulation system (0% -50% -100%), can be equipped with variable frequency motor, more energy-ecient;

Double acting cylinder with heavy-duty design, good dynamic balance, balanced and opposed to eliminate noise and vibration;

All wearing parts are original imported brands, and the valve platematerial is PEEK, with a service life of 6000-24000H;

The buer tank, separator, and gas pipeline are all made of 304 stainless steel;

Display for monitoring the degree of piston ring wear (optional);

Siemens PLC control system for temperature and pressure monitoring at more points, with reserved R485 interface.

Model	Air displacement m³/min	Exhaust pressure MPa	Power kW	Rotation speed rpm	Weight kg	Size mm
ESPM4-900	15	4.2	132	450	18000	5300X2150X2500
ESPM4-1080	18	4.2	160	480	18500	5300X2150X2500
ESPM4-1200	20	4.2	185	530	19000	5300X2150X2500
ESPM4-1500	25	4.2	250	550	19500	5300X2150X2500
ESPM4-1800	30	4.2	315	600	20000	5300X2150X2500
ESPM4-2100	35	4.2	355	480	23000	6650X2300X2950
ESPM4-2400	40	4.2	400	530	27300	6650X2300X2950
ESPM4-2700	45	4.2	450	420	27600	6850X2300X3150
ESPM4-3000	50	4.2	500	465	28000	6850X2300X3150
ESPM4-3300	55	4.2	560	515	28500	6850X2300X3150
ESPM4-3600	60	4.2	600	560	29000	6850X2300X3150
