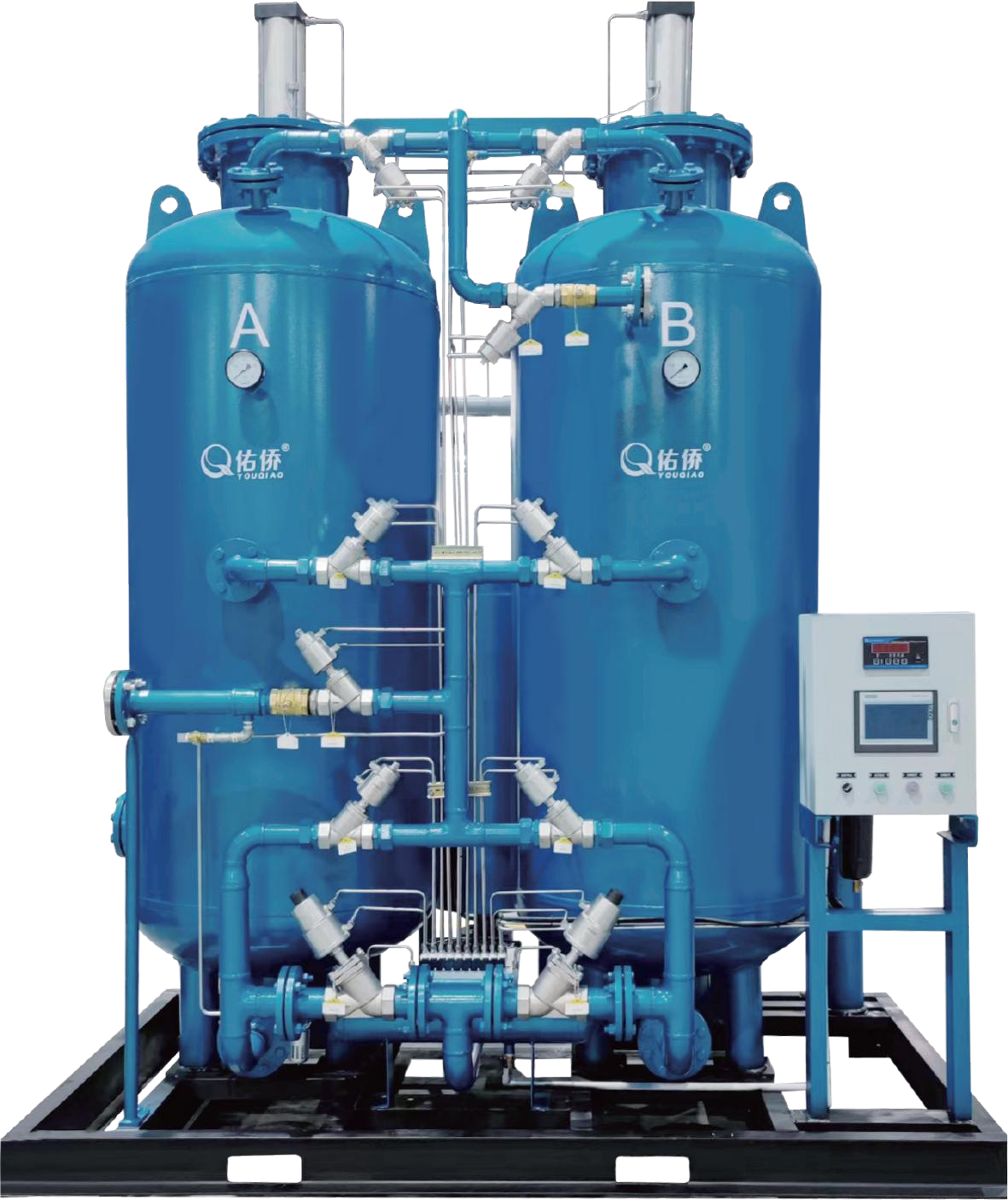

The EPD-120N Twin-Tower Nitrogen Generator is a high-capacity PSA nitrogen production system designed for industrial applications requiring a large and continuous supply of high-purity nitrogen. With an output of 120 Nm³/Hr and a purity of up to 99%, this generator ensures reliable performance, energy efficiency, and low operating costs. Equipped with intelligent PLC control and premium components, the EPD-120N is ideal for demanding environments such as metal processing, chemical plants, and electronics manufacturing.
High Flow Output
Delivers 120 Nm³/Hr of nitrogen at 99% purity (up to 99.999% optional).
Operating pressure: 0.1–0.7 MPa, with dew point ≤ -40°C.
Energy Efficient & Economical
Low air consumption: 4.4 m³/min at 99% purity.
Variable Cycle Control (VP Logic) saves 20%–60% energy by adjusting cycle time based on actual load.
Smart Control & Monitoring
PLC + 7-inch Touch Screen for operation and real-time data display.
Supports remote control, fault alarms, and Modbus/RS485 communication.
Robust & Long-Lasting Design
Adsorption towers manufactured in compliance with GB150 standards.
Stainless steel pneumatic valves with Y-type design, rated for 3 million+ cycles.
Blizzard + Vacuum + Vibration filling technology ensures dense sieve packing and extends service life.
Automatic Purity Assurance
Built-in gas analyzer with electrochemical sensor (3+ years lifespan).
Auto-exhaust system discharges off-spec nitrogen to ensure consistent output quality.
| Parameter | Value |
|---|---|
| Nitrogen Flow | 120 Nm³/Hr |
| Nitrogen Purity | 99% (up to 99.999% optional) |
| Outlet Pressure | 0.1–0.7 MPa |
| Dew Point | ≤ -40°C |
| Air Consumption | 4.4 m³/Min |
| Inlet Pressure | 0.6–0.8 MPa |
| Power Supply | 1 Phase, 220V, 50Hz |
| Rated Power | 0.2 kW |
| Dimensions (L×W×H) | 2150×1800×2500 mm |
| Weight | 1870±100 kg |
| Inlet/Outlet Connection | DN40 / DN25 |
Adsorption Towers: Cyclone gas diffuser for uniform flow.
Carbon Molecular Sieve: High-quality, performance-tested.
Control System: PLC + touch screen, VP logic, remote capable.
Pneumatic Valves: Stainless steel, high flow, maintenance-free.
Digital Sensors: Flow, pressure, and purity monitoring.
Silencers & Filter Mats: Noise reduction and particle filtration.
Laser cutting & metal heat treatment
Chemical & pharmaceutical manufacturing
Food & beverage packaging & preservation
Electronics & semiconductor production
Tire inflation & automotive testing
Oil & gas pipeline purging & inerting
Desiccant Air Dryer
Activated Carbon Filter
High-performance molecular sieves
Customized purity or flow configurations
High Capacity: Meets large-scale nitrogen demands.
Energy Saving: VP logic and auto shutdown reduce operating costs.
Smart Operation: Real-time monitoring and remote control.
Durable Build: High-quality materials and strict manufacturing standards.
Low Maintenance: Long-life components and automatic functions.
EPD-120N Nitrogen Generator Unit
Standard 1m³ Air Tank & 0.6m³ Nitrogen Tank
Control Panel with 7-inch Touch Screen
Installation & Operation Manual
