Product Description:

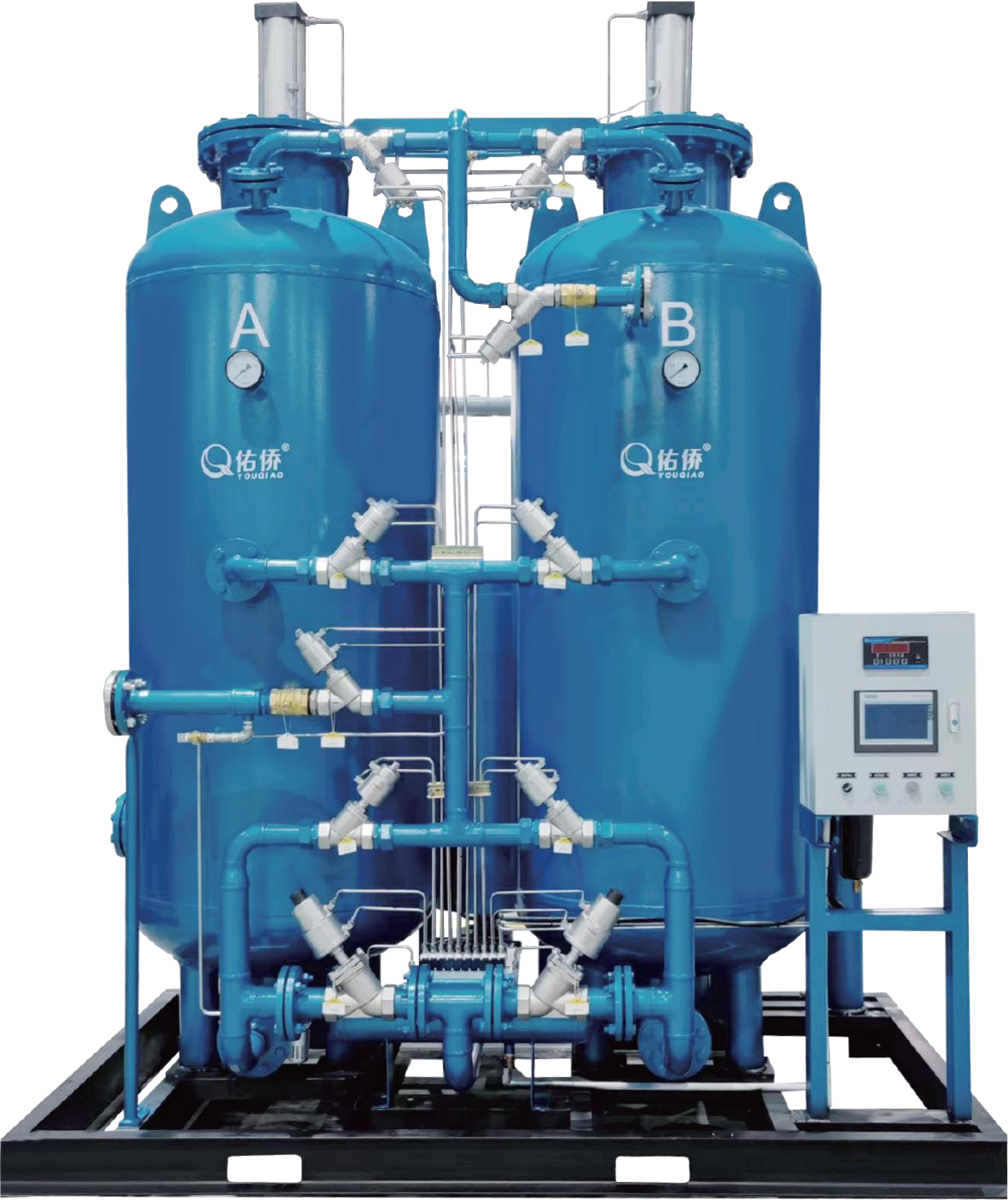

EPB-200N Twin-Tower Nitrogen Generator – High Capacity, Reliable Performance for Industrial Applications
The EPB-200N Twin-Tower Nitrogen Generator is a high-performance system engineered to deliver a continuous and stable supply of nitrogen gas at a flow rate of 200Nm³/Hr and a purity of up to 98%. Designed for demanding industrial environments, this system combines advanced PSA technology, intelligent control, and energy-saving features to provide a cost-effective and reliable nitrogen solution.
Key Features & Benefits:
✅ High-Capacity Nitrogen Output
Generates 200Nm³/Hr of nitrogen at 98% purity (up to 99.999% available as an option).
Operating pressure range: 0.1–0.7 MPa.
Low dew point: ≤ -40°C, ensuring dry and clean nitrogen for critical applications.
✅ Energy-Efficient Operation
Features advanced Variable Period (VP) control logic that intelligently adjusts cycle time based on real-time load.
Reduces compressed air consumption by 20%–60% under partial load conditions.
Automatic energy-saving shutdown when downstream pressure reaches the set point.
✅ Intelligent Control & Monitoring
Equipped with PLC and 7-inch touch screen for easy operation and real-time data visualization.
Supports remote communication (Modbus/RS485), remote start/stop, fault alarms, and data logging.
Digital flow, pressure, and purity sensors included as standard for accurate monitoring.
✅ Robust & Long-Lasting Construction
Adsorption towers manufactured in compliance with GB150 standards, featuring cyclone gas diffusers for optimal flow distribution.
High-quality stainless steel pneumatic valves rated for over 3 million cycles.
Long-life electrochemical purity sensor with a service life of over 3 years.
✅ Advanced Molecular Sieve Filling Technology
Utilizes a combination of blizzard filling, vacuum loading, and vibration platform for dense and stable sieve packing.
Prevents sinking and powdering, extending sieve service life up to 5 years without replenishment.
✅ Automatic Purity Protection
Built-in impure nitrogen exhaust system ensures only high-purity gas is delivered to the point of use.
Fully automatic operation with no manual intervention required.
Technical Specifications:
Nitrogen Output: 200 Nm³/Hr
Nitrogen Purity: 98% (up to 99.999% optional)
Nitrogen Pressure: 0.1–0.7 MPa
Dew Point: ≤ -40°C
Air Consumption: 7.0 m³/Min
Inlet Pressure: 0.6–0.8 MPa
Power Supply: 1Phase/220V/50Hz
Rated Power: 0.2 kW
Dimensions (L×W×H): 2200×1900×2500 mm
Weight: 2040±100 kg
Connections: DN40 inlet and outlet (Rp1.5 female thread)
Standard Components Include:
Adsorption Towers with Gas Diffuser
Carbon Molecular Sieve
PLC Control Box with Touch Screen
Stainless Steel Pneumatic Valves (12 pcs)
Digital Flowmeter & Pressure Sensors
Gas Analyzer with Long-Life Sensor
Pressure Regulator & Silencers
High-Density Filter Coir Mats
Optional Accessories (Not Included):
Desiccant Dryer
Activated Carbon Degreaser
Customized Control & Communication Interfaces
Applications:
Ideal for large-scale industrial applications including laser cutting, food and beverage packaging, electronics manufacturing, chemical processing, pharmaceutical production, heat treatment, and more—wherever a high-flow, high-purity nitrogen supply is essential.
Why Choose the EPB-200N?
High Capacity: Meets the most demanding nitrogen requirements with consistent flow and purity.
Smart & Connected: Remote monitoring and control capabilities for modern industrial setups.
Cost-Effective: Low operating cost thanks to energy-saving logic and durable components.
Customizable: Flexible configurations available to match specific process needs.
