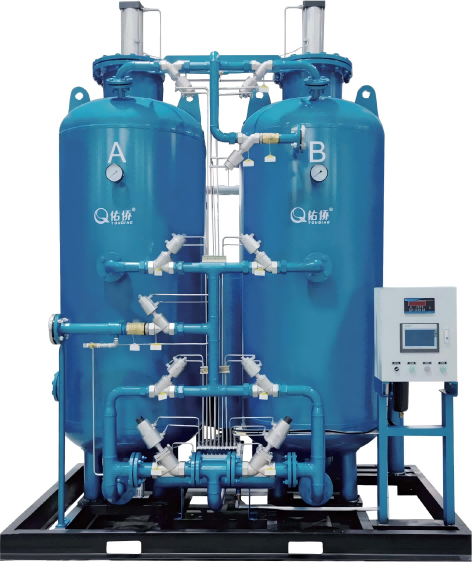

EPB-160N Twin-Tower Nitrogen Generator 160Nm³/Hr 98% Purity Energy Saving PLC Control System

Product Description:

EPB-160N Twin-Tower Nitrogen Generator – High Flow, High Efficiency, Intelligent Control

The EPB-160N Twin-Tower Nitrogen Generator is a robust and high-capacity system designed to deliver a reliable supply of nitrogen gas at a flow rate of 160Nm³/Hr and a purity of up to 98%. Ideal for large-scale industrial applications, this system integrates advanced PSA technology, intelligent control, and energy-saving features to ensure cost-effective and continuous operation.

Key Features & Benefits:

High Flow Output with Stable Purity

• Generates 160Nm³/Hr of nitrogen at 98% purity (up to 99.999% optional).

• Operating pressure: 0.1–0.7 MPa.

• Low dew point: ≤ -40°C, ensuring dry and clean nitrogen for sensitive applications.

Energy-Efficient Operation

• Advanced Variable Period (VP) control logic adjusts cycle time based on real-time load.

• Saves 20%–60% in compressed air consumption under partial load conditions.

• Automatic energy-saving shutdown when target pressure is reached.

Smart Control & Remote Monitoring

• PLC with 7-inch touch screen for operation and real-time data display.

• Supports remote communication (Modbus/RS485), start/stop, fault alarms, and data logging.

• Digital flow, pressure, and purity sensors included as standard.

Robust & Long-Lasting Components

• Adsorption towers built to GB150 standards with cyclone gas diffusers for uniform flow.

• High-quality stainless steel pneumatic valves with a lifespan of over 3 million cycles.

• Long-life electrochemical purity sensor (3+ years).

Advanced Sieve Filling Technology

• Combines blizzard, vacuum, and vibration platform methods for dense and stable sieve packing.

• Prevents sinking and powdering, extending sieve service life up to 5 years without topping up.

Automatic Purity Assurance

• Built-in impure nitrogen exhaust system ensures only high-purity gas is delivered.

• Fully automatic operation with no manual intervention required.

Technical Specifications:

• Nitrogen Output: 160 Nm³/Hr

• Nitrogen Purity: 98% (up to 99.999% optional)

• Nitrogen Pressure: 0.1–0.7 MPa

• Dew Point: ≤ -40°C

• Air Consumption: 5.6 m³/Min

• Inlet Pressure: 0.6–0.8 MPa

• Power Supply: 1Phase/220V/50Hz

• Rated Power: 0.2 kW

• Dimensions (L×W×H): 2150×1900×2430 mm

• Weight: 1970±100 kg

• Connections: DN40 inlet, DN25 outlet (Rp1 female thread)

Standard Components Include:

• Adsorption Towers with Gas Diffuser

• Carbon Molecular Sieve

• PLC Control Box with Touch Screen

• Stainless Steel Pneumatic Valves (12 pcs)

• Digital Flowmeter & Pressure Sensors

• Gas Analyzer with Long-Life Sensor

• Pressure Regulator & Silencers

• High-Density Filter Coir Mats

Optional Accessories (Not Included):

• Desiccant Dryer

• Activated Carbon Degreaser

• Customized Control & Communication Interfaces

Applications:
Suitable for a wide range of industries including laser cutting, food and beverage packaging, electronics manufacturing, chemical and pharmaceutical production, heat treatment, and more—wherever a high-flow, high-purity nitrogen supply is essential.

Why Choose the EPB-160N?

• High Capacity: Meets demanding nitrogen requirements with consistent flow and purity.

• Smart & Connected: Remote monitoring and control capabilities for modern industrial setups.

• Cost-Effective: Low operating cost thanks to energy-saving logic and durable components.

• Customizable: Flexible configurations available to match specific process needs.
