Product Description:

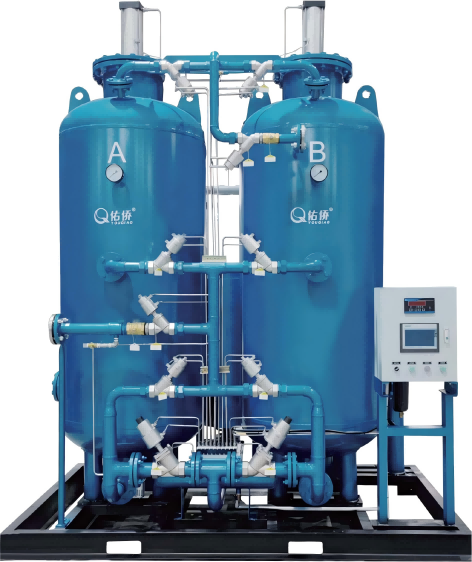

EPB-130N Twin-Tower Nitrogen Generator – High-Capacity, Intelligent, and Reliable
The EPB-130N Twin-Tower Nitrogen Generator is a high-performance system engineered to deliver a stable and continuous supply of nitrogen gas with a purity of up to 98% and a flow rate of 130Nm³/Hr. Designed for industrial applications requiring large-volume nitrogen production, this system combines advanced technology, energy efficiency, and robust construction for long-term reliability.
Key Features & Benefits:
High Flow & Consistent Purity
Delivers 130Nm³/Hr of nitrogen gas at 98% purity (options available up to 99.999%).
Stable output pressure range: 0.1–0.7 MPa.
Low dew point: ≤ -40°C, ensuring dry and clean nitrogen output.
Energy-Saving Operation
Features advanced Variable Period (VP) control logic that adjusts cycle time based on real-time load.
Saves up to 20%–60% in compressed air consumption under partial load conditions.
Automatic energy-saving shutdown when downstream pressure reaches set point.
Intelligent Control & Monitoring
PLC with 7-inch touch screen for easy operation and real-time data visualization.
Supports remote communication (Modbus/RS485), start/stop, fault alerts, and sensor monitoring.
Digital flow, pressure, and purity sensors included as standard.
Durable & Low-Maintenance Design
Adsorption towers compliant with GB150 standards, featuring cyclone gas diffusers for even flow.
High-quality stainless steel pneumatic valves rated for over 3 million cycles.
Long-life electrochemical purity sensor (3+ years service).
Advanced Molecular Sieve Filling
Combines blizzard, vacuum, and vibration platform filling methods for optimal sieve density.
Prevents sinking and powdering, extending sieve life up to 5 years without replenishment.
Automatic Purity Protection
Built-in impure nitrogen exhaust system ensures only high-purity gas is delivered.
No manual intervention required—fully automatic operation.
Technical Specifications:
Nitrogen Output: 130 Nm³/Hr
Nitrogen Purity: 98% (up to 99.999% optional)
Nitrogen Pressure: 0.1–0.7 MPa
Dew Point: ≤ -40°C
Air Consumption: 4.6 m³/Min
Inlet Pressure: 0.6–0.8 MPa
Power Supply: 1Phase/220V/50Hz
Rated Power: 0.2 kW
Dimensions (L×W×H): 2000×1700×2400 mm
Weight: 1870±100 kg
Connections: DN40 inlet, DN40 outlet (Rp1-1/2 female thread)
Standard Components Include:
Adsorption Towers with Gas Diffuser
Carbon Molecular Sieve
PLC Control Box with Touch Screen
Stainless Steel Pneumatic Valves (12 pcs)
Digital Flowmeter & Pressure Sensors
Gas Analyzer with Long-Life Sensor
Pressure Regulator & Silencers
High-Density Filter Coir Mats
Optional Accessories (Not Included):
Desiccant Dryer
Activated Carbon Degreaser
Customized Control & Communication Interfaces
Applications:
Ideal for use in laser cutting, food and beverage packaging, electronics manufacturing, chemical processing, pharmaceutical production, and heat treatment—wherever a reliable and pure nitrogen supply is critical.
Why Choose the EPB-130N?
High Capacity: Meets demanding nitrogen requirements with consistent flow and purity.
Smart & Connected: Remote monitoring and control capabilities for modern industrial setups.
Cost-Effective: Low operating cost thanks to energy-saving logic and durable components.
Customizable: Flexible configurations available to match specific process needs.
