Product Description:

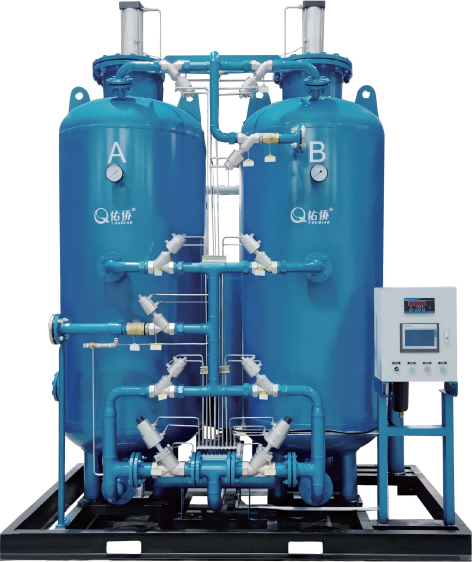

EPB-100N Twin-Tower Nitrogen Generator – High Efficiency, Reliable Performance
The EPB-100N Twin-Tower Nitrogen Generator is a state-of-the-art system designed to deliver high-purity nitrogen gas efficiently and reliably for various industrial applications. With a nitrogen output of 100Nm³/Hr and a purity level of up to 98%, this system is ideal for industries requiring consistent and clean nitrogen supply.
Key Features & Advantages:
High Efficiency & Low Air Consumption
Utilizes premium carbon molecular sieve with optimized air-to-nitrogen ratio.
Advanced variable cycle control (VP logic) adjusts operation based on real-time load, saving up to 20–60% in air consumption.
Standard 98% purity with optional configurations for up to 99.999% purity.
Intelligent Control System
Equipped with PLC and 7-inch touch screen for easy operation and monitoring.
Supports remote communication (Modbus/RS485), start/stop, fault alarms, and real-time data tracking.
Automatic energy-saving shutdown when target pressure is reached.
Durable & Reliable Components
Adsorption towers built to GB150 standards with cyclone gas diffusion for even flow distribution.
High-quality stainless steel pneumatic valves with a lifespan of over 3 million cycles.
Long-life electrochemical purity sensor (3+ years) and digital flow/pressure sensors.
Advanced Filling Technology
Combines blizzard filling, vacuum loading, and vibration platform to ensure tight molecular sieve packing.
Prevents powdering and sinking, extending sieve life up to 5 years without replacement.
Automatic Purity Assurance
Built-in impure nitrogen exhaust system automatically discharges off-spec gas, ensuring only high-purity nitrogen is delivered.
Energy Saving & Eco-Friendly
Variable pressure desorption and unequal pressure equalization reduce compressed air use.
Supports low-carbon operation with smart cycle adjustment and pressure-based energy control.
Technical Specifications:
Nitrogen Output: 100 Nm³/Hr
Nitrogen Purity: 98% (99%–99.999% optional)
Nitrogen Pressure: 0.1–0.7 MPa
Dew Point: ≤ -40°C
Air Consumption: 3.5 m³/Min
Inlet Pressure: 0.6–0.8 MPa
Power Supply: 1Phase/220V/50Hz
Rated Power: 0.2 kW
Dimensions (L×W×H): 1900×1650×2300 mm
Weight: 1290±100 kg
Standard Components Include:
Adsorption Towers with Gas Diffuser
Carbon Molecular Sieve
PLC Control Box with Touch Screen
Stainless Steel Pneumatic Valves
Digital Flowmeter & Pressure Sensors
Gas Analyzer with Long-Life Sensor
Pressure Regulator & Silencers
Filter Coir Mats
Optional Accessories (Not Included):
Desiccant Dryer
Activated Carbon Degreaser
Customized Communication & Control Solutions
Applications:
Widely used in food packaging, electronics, chemical processing, laser cutting, heat treatment, and pharmaceutical industries where clean, dry, and high-purity nitrogen is essential.
Why Choose EPB-100N?
Stable Performance: Robust design ensures long-term operation with minimal maintenance.
Smart Operation: User-friendly interface with remote monitoring and control.
Cost-Effective: Low energy consumption and extended component life reduce total cost of ownership.
Customizable: Flexible configurations to meet specific purity and flow requirements.
