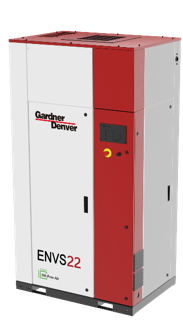

In industrial environments where air quality is non-negotiable, the presence of oil in compressed air can lead to significant operational, environmental, and safety challenges. Gardner Denver addresses these concerns head-on with the ENVS2-37KW oil-free scroll air compressor, a machine engineered to deliver 100% oil-free air with exceptional efficiency, reliability, and quiet operation.
The Critical Need for Oil-Free Compressed Air
Compressed air is a vital utility across numerous industries, but conventional compressors introduce contaminants that can compromise both processes and products. It is estimated that every cubic meter of air drawn into a standard compressor contains up to 1.8 billion particles of dust, oil, and moisture. During compression, lubricating oil breaks down under high temperatures, releasing hydrocarbons. The Output air can contain over 2 billion dust particles and approximately 0.03 mg/m³ of oil vapor.
These oil molecules are more than just impurities—they are liabilities. In manufacturing, they cause mechanical failures, paint defects, and corrosion. In food and pharmaceutical applications, they pose serious health risks. Moreover, oil-contaminated condensate from dryers and filters leads to costly wastewater treatment. The ENVS2-37KW eliminates these risks at the source, providing pure, uncontaminated air.
Advanced Scroll Compression Technology
At the heart of the ENVS2-37KW is its innovative scroll compression mechanism. The compressor employs two spirals: one fixed and one orbiting. As the orbiting scroll moves in a predefined path (following a 1-2-3-4 sequence), it creates crescent-shaped compression pockets that gradually reduce in volume. This continuous and smooth process ensures steady intake, compression, and discharge without pulsation or turbulence.
Key components include:
- High-Durability Sealing Tips: Made from special materials to minimize wear and maintain sealing integrity over time.
- Optimized Cooling Fan: Enhances thermal management, ensuring consistent performance even under continuous operation.
This refined compression principle not only guarantees oil-free air but also contributes to the unit’s remarkable energy efficiency and low noise levels.
Modular Design for Unmatched Flexibility and Efficiency
A standout feature of the ENVS2-37KW series is its modular architecture. Each module integrates a scroll head, belt drive, and motor, with power ratings of 2.2 kW or 5.5 kW. For instance, a 22 kW model consists of four such modules operating in parallel, delivering a total output of 2.52 m³.
The intelligent control system dynamically activates only the number of modules needed to meet real-time air demand. When demand drops, the system may run just one module—consuming only 5.5 kW instead of the full 22 kW. This part-load efficiency is a game-changer. Compared to conventional compressors operating at 70% load, the ENVS2-37KW can achieve over 30% energy savings—outperforming even variable frequency drive (VFD) units in many scenarios.
Whisper-Quiet Operation for Sensitive Environments
Noise pollution is a common drawback of industrial compressors, but not with the ENVS2-37KW. The unit incorporates multiple noise-reduction technologies:
- Precision Machining: High-accuracy scroll manufacturing eliminates impact noise from moving parts and air turbulence.
- Balanced Design: Dynamic and static scrolls are balanced to minimize vibration.
- Anti-Vibration Mounts: Special rubber isolators at the base absorb residual vibrations.
- Acoustic Enclosure: A sound-dampening shell encapsulates the compressor, making it suitable for noise-sensitive settings such as laboratories, clinics, and indoor production areas.
This combination ensures that the compressor operates at noise levels significantly lower than conventional models, without sacrificing performance.
Wide-Ranging Applications
The ENVS2-37KW is designed for sectors where air purity and reliability are critical:
- Food & Beverage: Prevents product contamination.
- Pharmaceutical & Medical: Ensures compliance with stringent hygiene standards.
- Electronics: Protects sensitive components from oil deposits.
- General Manufacturing: Reduces downtime and maintenance costs associated with oil-related issues.
Summary of Key Benefits
- 100% Oil-Free Air: Eliminates contamination risks and reduces waste treatment costs.
- High Efficiency: Modular design and smart controls enable significant energy savings.
- Quiet Operation: Ideal for use in noise-restricted environments.
- Reliability: Advanced scroll technology and robust construction ensure long service life with minimal maintenance.
- Scalability: Modular approach allows the system to adapt to varying demand without efficiency loss.
Conclusion
The GardenDenfor ENVS2-37KW oil-free scroll air compressor represents a leap forward in compressed air technology. By combining clean air delivery with modular intelligence, superior energy performance, and ultra-quiet operation, it meets the evolving demands of modern industry. Whether for critical manufacturing processes, sensitive medical applications, or everyday industrial use, the ENVS2-37KW offers a future-proof solution that prioritizes purity, efficiency, and sustainability.
For businesses looking to enhance operational safety, reduce environmental impact, and cut energy costs—all while maintaining uncompromised air quality—the ENVS2-37KW is the clear choice.
